BN-FD4-XX
Short Range Security Radar
Detect Moving Vehicles and People
Speed,Angle, Distance Output

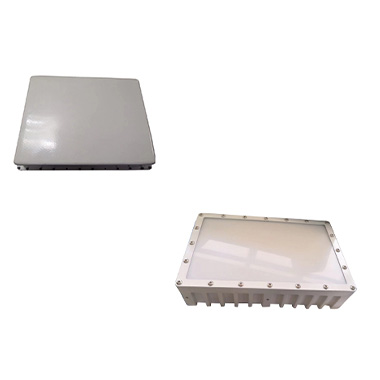

Light Weight and Compact
Wide Range, Stable and Reliable

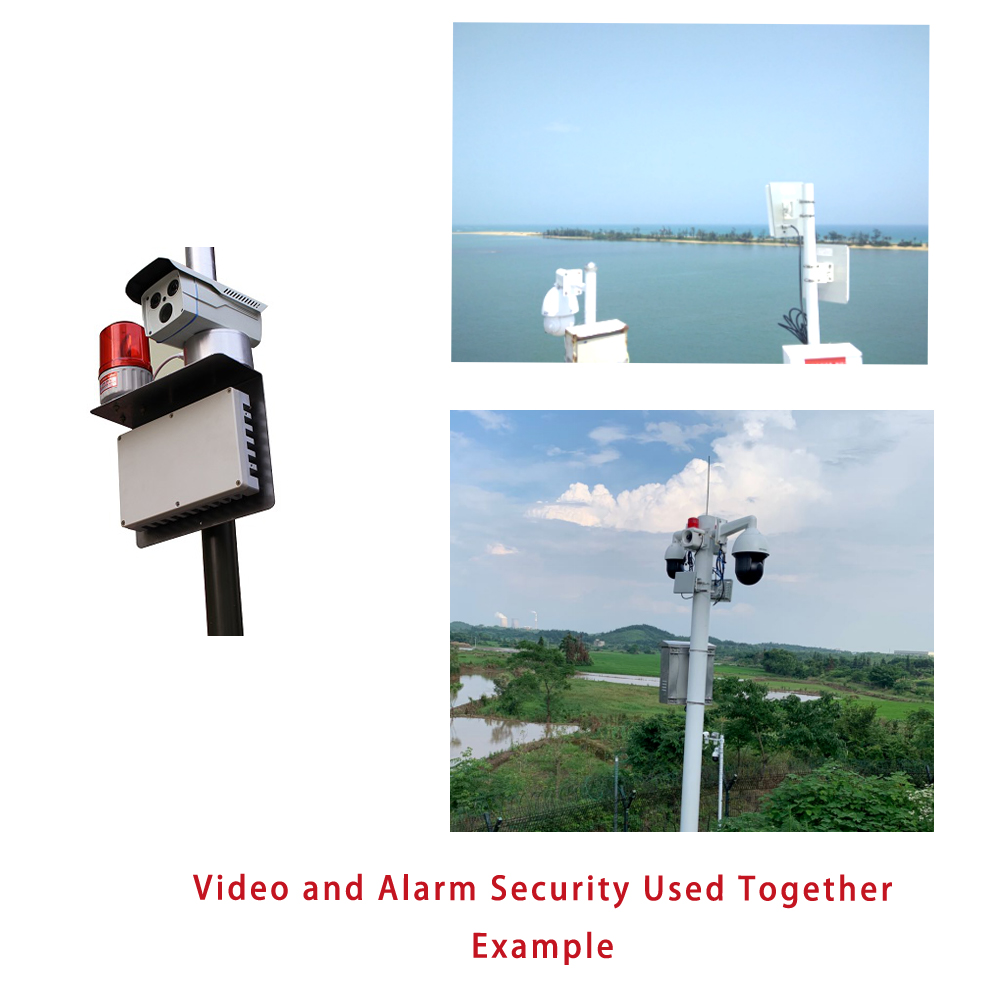

Easy Integration of Video Security
The FD4 series security radar is a micro multi-purpose surveillance radar system, which adopts FMCW system. It has the advantages of small volume, light weight, high reliability, low price, small distance blind area, no speed blind spot, high range resolution, good anti-jamming performance and so on. The radar is designed with Ethernet interface and serial interface, which can communicate with alarm system and host computer.
Application fields:

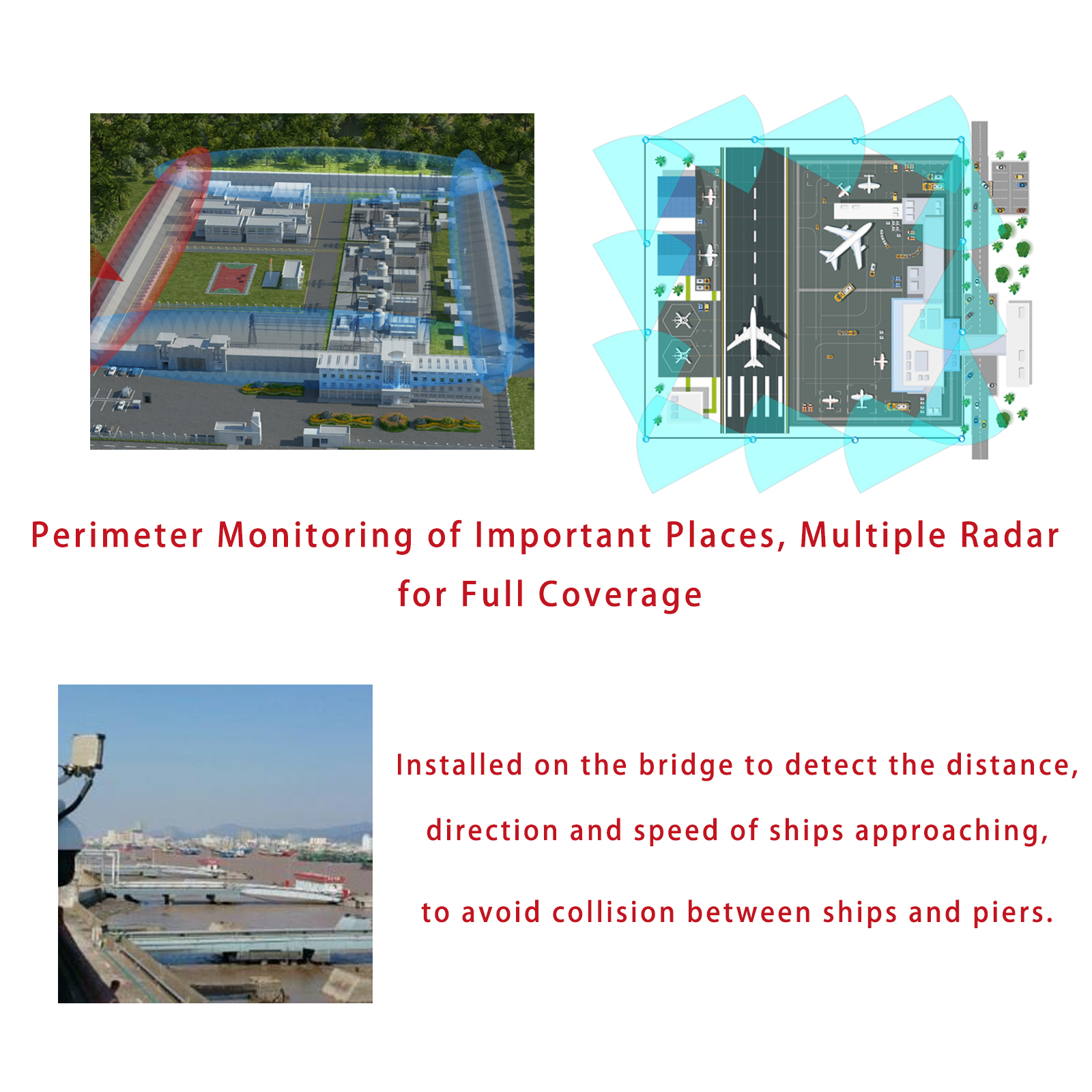

1. Perimeter monitoring
2. Airport security area protection
3. Prison security
4. Oil pipeline and oil field protection
5. Detection of moving vehicles, ships and personnel
Etc...
Main features:
1. Light weight and compact radar
2. No mechanical moving parts, electronically controlled scanning
3. It is convenient to integrate with the existing security video system
4. Low transmission power
5. Work 24 hours a day
6. Strong ground wave suppression and low false alarm rate
7. Regional real-time continuous monitoring.
