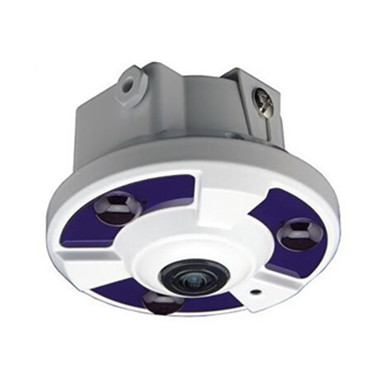

BN-HIP130DVIR3
1.3 Megapixel IP 130 Degree Fish Eye Camera
1.3 Megapixel,Hi3518C DSP,
Resolution:1280*960P
Vandalproof Housing,
130 degree lens,
3pcs IR Array LEDs.
Fish-Eye 130°IP Vandalproof camera
●1.3 Megapixel,High sensitivity CMOS sensor,Hi3518C DSP,Resolution:1280*960P
●Vandalproof Housing,130 degree lens,
●3pcs IR Array LEDs.25-30m IR distance
●H.264 video compression, Min. illumination 0.1lux
●Support ONVIF 2.0
|
Camera
|
|
Product Name
|
1.3 Megapixel IP 130 Degree Fish Eye Camera
|
|
Model No.
|
BN-HIP130DV/IR3
|
|
DSP
|
high performance HI3518C DSP
|
|
Imaging Sensor
|
1/3" CMOS Sensor
|
|
Resolution
|
1280(H)×960(V)，1.3 Megapixel
|
|
Lens
|
130degree HD Megapixel Lens
|
|
IR LEDs
|
3pcs IR Array Leds
|
|
Night Vision Distance
|
30m IR
|
|
Video
|
|
Video processing
|
H.264 video compression, dual streaming, AVI format, 0.1M~6Mpbs adjustable;
|
|
Video Output
|
Main stream:1280×960,1024×768,1280×720;Sub Stream: 960×540,640×360,480×270,
|
|
Frame rate
|
1.3MP 25 frame(full real time),support 1~25frame/seconds adjustable
|
|
Illumination
|
Color 0.1Lux@F1.2,B/W0.01 Lux@F1.2
|
|
D/N Mode
|
IR-CUT Auto switch
|
|
Network and Function
|
|
Network Interface
|
RJ45 ethernet ,10/100 M adaptive;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPNP etc.protocol
|
|
Access Protocol
|
Spoort Standard ONVIF protocol, support third-party access;Support Smart phones; support Android system, iPhone platform
|
|
Motion Detection
|
support motion detection,IO alarm linkage front-end storage device
|
|
Remote Control
|
Support uniform client and platform system application
|
|
SDK
|
Supply complete SDK for second development.
|
|
Playback
|
Support front end storage ,playback and download
|
|
WEB configuration
|
Support WEB configuration, OSD, real-time video transmission
|
|
Common
|
|
Power
|
12VDC(±10%)/POE(optional)
|
|
Operating Temperature and humidity
|
-10℃-50℃,20%-90% RH
|
|
Dimension
|
Φ120*75mm
|
|
Weight
|
0.5Kg
|
