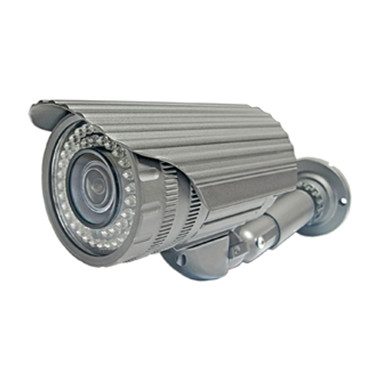

BN-SDI200SVHS
HD-SDI Zoom CCTV Camera
1/2.7” SONY IMX 222 CMOS sensor
Korean Eyenix DSP ;
2.0Megapixels,
1080P/30,720P/60
D/N auto switch,auto Focus
HD-SDI 3x Zoom IR weatherproof camera
● 1/2.7” SONY IMX 222 CMOS sensor
● Korean Eyenix DSP ; 2.0Megapixels,1080P/30,720P/60
●D/N auto switch,auto Focus
●3X optical zoom,Auto Focus with IR-Cut lens
●AGC,E-shutter,Motion Detection,Privacy masking
●54pcs IR LEDs, 30-40M IR distance
●water resistant level:IP66, OSD, RS485, DC12V
| Product Name |
2.0Megapixel 3X Zoom HD SDI IR Waterproof Camera |
| Product Model |
BN-SDI200SVHS |
| Video |
| Image sensor |
1/2.7” CMOS Sensor |
| Pixel |
2.0Megapixel |
| DSP |
Eyenix DSP |
| Resolution |
(1920x1080)1080P |
| Video Output |
1080i 60/50 1080p 30/25 720p 60/50 |
| Signal Noise Ratio |
50dB |
| Illumination |
1Lux (F1.8) with 50 IRE |
| 1.0Lux ICR on( F1.8) with 50 IRE |
| IR |
| IR leds/distance |
54pcs IR LEDs, 30-40M IR distance |
| Optical zoom |
3X optical zoom / F1.2(Wide) |
| Focus mode |
Auto/Manual |
| Viewing range |
Wide:H: 115.2°;V: 63.29°;D:132.6°, Tele:H:37.1°;V:20.8°;D:42.5° |
| Focus distance |
10cm~infinite(Wide),1m~infinite(Tele) |
| Function |
| Exposure mode |
Auto |
| Image effect |
Pause/B/W/Negative/Mirror/flip/interrupt |
| E-shutter |
1/50~1/10000s(auto mode) |
| White balance |
Auto/filament lamp/fluorescent lamp/Sunlight/Manual |
| Auto Gain control |
Auto |
| Exposure Compensation |
Support |
| Backlight Compensation |
Off/Low/Middle/High |
| True Day and Night |
Auto Iris/ IR-CUT switch D/N |
| OSD menu |
English/TraditionalChinese/Simplified Chinese/Japanese |
| Communication |
RS485,PELCO-D protocol,baud rate:2400bps |
| General |
| Operation Temperature |
0℃~+50℃ |
| Storage Temperature |
-20℃~+60℃ |
| Humidity |
20%~60% RH |
| Dimensions |
356(L)x92(W)x156(H)mm |
| Power supply |
DC12±0.5V |
| Power Consumption |
9W |
| Weight |
1120g |
