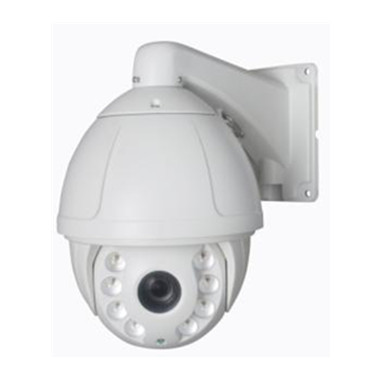

BN-HDA8604R
7inch 1.3MP High Speed AHD PTZ Camera
Light source changeable
high speed IR PTZ camera,
no dead corner within 200M;
1/3 inch Scan cmos Sensor,
18X Optical Zoom;
1. Light source changeable high speed IR PTZ camera,no dead corner within 200M;
2.1/3 inch Progressive Scan cmos Sensor,18X Optical Zoom;
3.Supports coaxial transmission for video and signals control, effective distance is up to 500M;
4.Military circuit design, IP66 protection, anti-surge,anti 6000V instantaneous voltage;
| Camera |
| Sensor |
1/3" 1.3MP Progressive CMOS |
| Effective pixels |
1280*960 |
| Lens |
18x Optical zoom |
| 3D NR |
Support |
| AGC |
Auto/Manual |
| BLC |
Support |
| D/N |
IR-CUT |
| S/N Ratio |
≥50dB |
| WB |
Indoor/Outdoor/Auto/Manual |
| Min. illumination |
Color: 0.5Lux \ B/W: 0.05Lux |
| Lens |
| Focus Mode |
Auto/Semi-auto/Manual |
| Focal length |
4.7mm -84.6mm |
| Iris |
F1.6~F3.5 |
| Features |
| Pan range |
360° |
| Tilt range |
93° |
| Manual Pan speed |
200°/s |
| Manual Tilt speed |
80°/s |
| Preset Points |
220PCS |
| Guard Tours |
3 groups |
| Preset retention time |
1 ~ 60s(editable) |
| Max transmission Distance |
Common 75-3 cables can be up to 500m |
| Video standard |
AHD standard |
| Output |
1280H x 720V/25fps /1280H x 720V/30fps |
| 1280H x 960V/25fps /1280H x 960V/30fps |
| LEDs |
Angle changeable Array Led * 8pcs |
| Power |
DC12V/4A |
| Consumption |
<25W |
| Dynamic range |
83.5dB |
| Operating temperature |
Indoor:0ºC~+40ºC Outdoor: -40℃~+60℃ |
