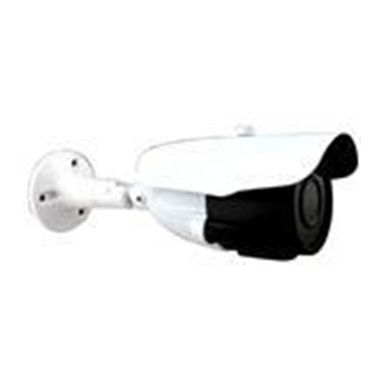

BN-CL40CC4/A
Bullet Color Image Day/Night Camera
1/3"Sony super HAD CCD,
Advanced DSP，
Min illumination 0.00001Lux
Bullet Color Image Day/Night Camera
●2.8-12mm varifocal lens, exteral zoom and focus adjustment
●Capture full frame & color image under ultra low light situation, no slow motion
●Built-in SSNR, upgraded 3D Noise Reduction technology effectively reduce the noise on image displayed under low illumination
●700TVL High resolution, color picture in day and night
●Min. illumination 0.00001lux at F1.2
●OSD ,IP66, DC12V
|
Specification
|
|
Product Name
|
Varifocal Bullet Color Image Day/Night Camera
|
|
Product Model
|
BN-CL40CC4/A
|
|
Video
|
|
Sensor
|
1/3 “ SONY Super HAD II CCD
|
|
Pixel
|
PAL:976(H)x 582(VF)/NTSC:976(H)x 494(V)
|
|
Scanning
|
2:1 Interlace
|
|
Sync. Mode
|
Internal
|
|
Horizontal/vertical Frequency
|
PAL:15.625 kHz, 50.00 HZ
NTSC :15.734kHZ,59.94HZ
|
|
Resolution
|
Color 700TVL
|
|
Video output
|
1.0Vp-p/75Ω CVBS
|
|
S/N Ratio
|
>50dB (AGC off)
|
|
Illumination
|
0.00001Lux/F1.2 (color)
|
|
Gamma correction
|
0.45
|
|
Power supply
|
12VDC(±10%) 3W
|
|
Operation temperature and humidity
|
-10℃~50℃ ,20%~90% RH
|
|
Lens
|
|
Lens
|
with 2.8~12mm lens
|
|
Function
|
|
Electronic shutter
|
PAL:1/50~1/100,000s / NTSC:1/60~1/100,000s
|
|
Day/night mode
|
Color
|
|
Gain control
|
Auto
|
|
Sync. Mode
|
Internal
|
|
Measurement
|
|
Dimension
|
95*95*235mm
|
|
Weight
|
650g
|
