BN-AIP400DV/IR

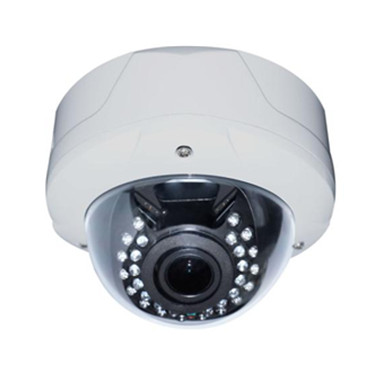

4.0Mega Pixel IR Vandalproof Dome IP Camera
4.0MP 1/3’’CMOS,
3.0MP full real time，
4.0MP@20fps
2.8-12mm
30pcs IR Leds
4.0MP 1/3''CMOS,3.0MP full real time，
4.0MP@20fps
2.8-12mm 3.0 Megapixel HD Lens
30pcs IR Leds，25-30M IR Distance
Support onvif
|
Specification
|
|
Product Name
|
4.0Mega Pixel IR Vandalproof Dome IP Camera
|
|
Model No.
|
BN-AIP400DV/IR
|
|
Video
|
|
System
|
Ambarella ARM Cortex-A9(S2LXXM)
|
|
Sensor
|
1/3'' 4.0MP CMOS Sensor
|
|
Output resolution
|
2688(H)×1512(V)
|
|
D/N Mode
|
Auto switching,black and white vide and IR cut action linkage
|
|
Illumination
|
Color 0.6Lux@F1.2,Black 0.08 Lux@F1.2
|
|
Video processing
|
H.264 video compression, dual streaming
|
|
|
AVI format, 0.5M~8Mpbs adjustable;
|
|
Video Output
|
Main streaming:2688×1512,2560×1440,1920×1080,1280×960,1280×720; Sub streaming;704×576,640×480,640×360,480×360,352×288,320×240;
|
|
|
|
|
Frame rate
|
4MP(1-20fps);3MP(1~25fps); 2.0MP(1 ~ 30fps), support 1~30frame/seconds adjustable
|
|
Network interface
|
RJ45 ethernet,10/100M;
|
|
Access Protocol
|
RTSP/FTP/PPPOE/DHCP/DDNS/NTP/
ONVIF/P2P protocol supported ,GB/T28181 Protocol optional;
|
|
|
Support IE6.0 and above
|
|
|
Support Android\iPhone smartphone
|
|
Lens
|
|
Lens
|
2.8-12mm Megapixel HD Lens
|
|
IR distance
|
25-30M (30pcs Φ5 IR LEDs)
|
|
Function
|
|
Function
|
Support WEB configuration, OSD,real-time video transmission
|
|
|
Support motion detection and picture pop up linkage
|
|
|
Support front end storage ,playback and download
|
|
|
Support uniform client and platform system application
|
|
|
Support complete SDK for second development.
|
|
Normal
|
|
Power supply
|
DC12V/POE(optional)
|
|
Operation temperature
|
-10°C~+60°C,10%~90%RH
|
|
Dimension
|
Φ135*115mm
|
|
Weight
|
540g
|
