BN-AIP200C6/IR

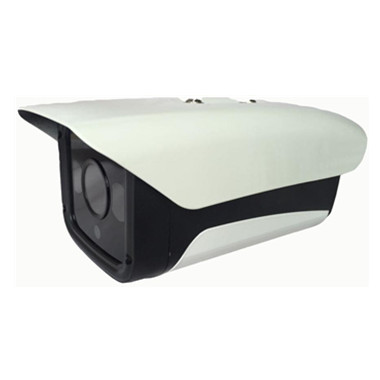

2.0Mega Pixel IR Waterproof Bullet IP Camera
1/2.8”Sony IMX222 CMOS Sensor,
Ambarella A5S ARM11 DSP.
Resolution:1080P/25fps
2pcs* IR Array LEDs
3D-DNR, WDR function
2pcs* IR Array LEDs, 40-50m IR distance. 3.0Megapixel, 4/6/8/12mm fixed lens . IR-CUT filter
H.264 video compression, support dual-stream
3D-DNR, WDR function
High definition image performance
support multi network protocols
support varieties NVR and other backend equipments
surprisingly powerful platform software
Two-way intercom (optional)
Compatible with ONVIF management platform
support P2P directly, support standard Onvif
DC12V, don't support POE
Waterproof IP66
|
Specification
|
|
Product Name
|
2.0Mega Pixel IR Waterproof Bullet IP Camera
|
|
Model No.
|
BN-AIP200C6/IR
|
|
Video
|
|
System
|
Ambarella A5S ARM11 high-performance DSP
|
|
Sensor
|
1/2.8”Sony IMX222 CMOS Sensor,
|
|
Output resolution
|
1920(H)×1080(V)
|
|
D/N Mode
|
Auto switching,black and white video and IR cut action linkage
|
|
Illumination
|
Color 1.0Lux@F1.2,Black 0.1 Lux@F1.2
|
|
Video processing
|
H.264 video compression, dual streaming
|
|
|
AVI format, 0.1M~6Mpbs adjustable;
|
|
Video Output
|
Main streaming: 1920×1080,1600×1200,1280×1024,1280×960,1024×768,1280×720; Sub streaming: 960*540,640×360,480×270,352×288,320×240, 352×192, 320×192, 288×192, 256×192
|
|
|
|
|
Frame rate
|
2.0 MP 25 frame(full real time),support 1~25frame/seconds adjustable
|
|
Network interface
|
RJ45 ethernet,10/100M;RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP protocol supported
|
|
|
|
|
Access Protocol
|
Standard ONVIF Protocol, Support third party access; PC;
|
|
|
Support IE6.0 and aboveSmartphone
|
|
|
Support Android\iPhone
|
|
Lens
|
|
Lens
|
4/6/8/12/16MM megapixel fixed lens
|
|
IR distance
|
45-50M (2pcs* IR array LEDs)
|
|
Function
|
|
Function
|
Support WEB configuration, OSD,real-time video transmission
|
|
|
Support motion detection
|
|
|
Support front end storage ,playback and download
|
|
|
Support uniform client and platform system application
|
|
|
Support complete SDK for second development.
|
|
Normal
|
|
Power supply
|
DC12V/POE(optional)
|
|
Operation temperature
|
-10°C~+60°C,10%~90%RH
|
|
Dimension
|
165*96*92mm
|
|
Weight
|
710g
|
