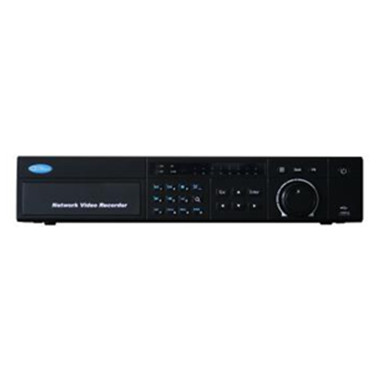

BN-NVR816E
16CH P2P NVR
ONVIF SPEC 2.4
13chs 720P@30fps
6chs 1080P@30fps
16chs simultaneous playback
Support 8* SATA HDD
ONVIF SPEC 2.4;
Access bandwidth 96M，Up to 6MP ip camera access;
16chs IPC access，Up to 16chs simultaneous playback;
Double 1000M adaptive Ethernet ports；
1ch face detection or 2chs perimeter analysis
Support 8* SATA HDD，1*ESATA HDD；
Support for third-party cloud storage, support for P2P, support for mobile messaging push.
|
Model No.
|
BN-NVR816E
|
|
OS
|
Embedded Linux
|
|
Video&Audio input
|
Bidirectional Talk
|
1CH，BNC(Line in,2Vpp,1Kohms)
|
|
IPC Input
|
96Mbps
|
|
16CH
|
|
Video&Audio output
|
CVBS
|
1CH,BNC（1.0Vp-p,75ohms）
|
|
VGA
|
1CH,Resolution 1920x1080,1280×1024,1280×720,1024×768
|
|
HDMI
|
Standard 1.3a
|
|
1CH,Resolution 1920x1080,1280×1024,1280×720,1024×768
|
|
Audio Output
|
1CH,BNC(Line out,2Vpp,300ohms)
|
|
Video&Audio encoding
|
Audio Compression
|
G.711A
|
|
Audio Bit Rate
|
64Kbps
|
|
Video&Audio decoding
|
IP Resolution
|
Main stream:up to 5632x4224
Auxiliary stream:D1
|
|
Video bitrate
|
Up to 2Mbps@D1,4Mbps@720P,8Mbps@1080P
|
|
Video decoding
|
MPEG-4/H.264(Up to High Profile@Level5.0）
|
|
Synchronous Playback
|
Up to 16CH
|
|
Decoding Ability
|
Up to 13CH 720P@30 or 6CH 1080P@30
|
|
Intelligent Analysis
|
1CH Face recognition OR 2CH Perimeter detection
|
|
Support 1080P
|
|
Other Function
|
Bidirectional Talk
|
Two-way voice intercom function
|
|
Motion Detection
|
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
|
|
Picture Capture
|
Local Capture&Web Capture
|
|
HDD Interface
|
SATA
|
8
|
|
ESATA
|
1
|
|
Max Capacity
|
no limited
|
|
External Interface
|
Network Interface
|
2 RJ45 10M/100M/1000M adaptive Ethernet interface
|
|
USB
|
2 USB 2.0 Interfaces
|
|
Alarm Input
|
16CH
|
|
Alarm Output
|
4CH
|
|
RS-232
|
1CH
|
|
RS-485
|
1 RS-485 interface
|
|
Size&Weight
|
Dimensions
|
520x520x215mm
|
|
Size
|
445x440x89mm
|
|
Weight
|
7Kg(without HDD）
|
|
General
|
Power Supply
|
110V~220V±10% ±10% 47Hz～63Hz
|
|
Working Temperature
|
-10℃--＋55℃
|
|
Working Humidity
|
10％--90％
|
|
Consumption
|
20W(without HDD）
|
