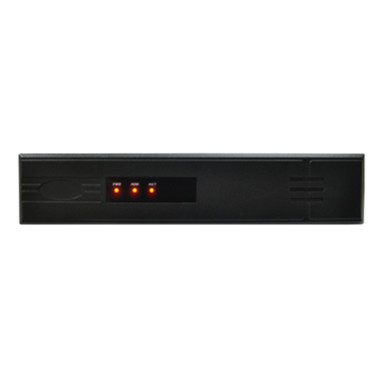

BN-NVR204L-P4
4CH P2P NVR
ONVIF SPEC 2.4
4chs 720P@30fps
2chs 1080P@30fps
4chs simultaneous playback
Support 1* SATA HDD
ONVIF SPEC 2.4;
Access bandwidth 48M，Up to 2MP ip camera access;
4chs IPC access，Up to 4chs simultaneous playback;
100M adaptive Ethernet ports，4ch POE ports or 4ch switch ports
Support 1* SATA HDD
Support for third-party cloud storage, support for P2P, support for mobile messaging push.
|
Model No.
|
BN-NVR204L-P4
|
|
OS
|
Embedded Linux
|
|
Video&Audio input
|
Bandwidth Input
|
48Mbps
|
|
|
Bandwidth Output
|
48Mbps
|
|
|
IPC Input
|
4CH
|
|
Video&Audio output
|
CVBS Output
|
N/A
|
|
|
VGA
|
1CH ,1920×1080,1280×1024,1280×720,1024×768
|
|
|
HDMI
|
Standard 1.3a
|
|
|
|
1920×1080,1280×1024,1280×720,1024×768
|
|
|
Audio Output
|
N/A
|
|
Video&Audio encoding
|
Audio Compression
|
N/A
|
|
|
Audio Bit Rate
|
N/A
|
|
Video&Audio decoding
|
IPC Resolution
|
Main stream:1920x2048
|
|
|
|
Sub-stream：D1
|
|
|
Video decoding
|
MPEG-4/
|
|
|
|
H.264(High Profile@Level5.0）
|
|
|
Audio decoding
|
G.711A,G.726
|
|
|
Playback
|
4CH
|
|
|
Decoding Ability
|
4CH 720P@30FPS
|
|
|
|
OR 2CH 1080P@30FPS
|
|
Intelligent Analysis
|
N/A
|
|
Other
|
Bidirectional Talk
|
N/A
|
|
|
Motion Detection
|
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
|
|
|
Picture Capture
|
JPEG Capture
|
|
HDD Interface
|
SATA
|
1
|
|
|
Max Capacity
|
no limited
|
|
POE
|
POE Interface
|
4CH
|
|
|
|
IEEE 802.3af
|
|
|
|
RJ45 10M/100M adaptive
|
|
|
Power output
|
≤45W
|
|
External Interface
|
Network Interface
|
1PCS RJ45;10M/100M/1000M adaptive ethernet port
|
|
|
USB
|
2 USB 2.0 Interfaces
|
|
Size&Weight
|
Package size
|
410x293*60mm
|
|
|
Item size
|
215x235x45mm
|
|
|
weight
|
0.9KG(NO HDD)
|
|
General
|
Power Supply
|
DC 48V 1.35A
|
|
|
Working Temperature
|
0℃--＋55℃
|
|
|
Working Humidity
|
10％--90％
|
|
|
Consumption
|
5W（NO HDD）
|
