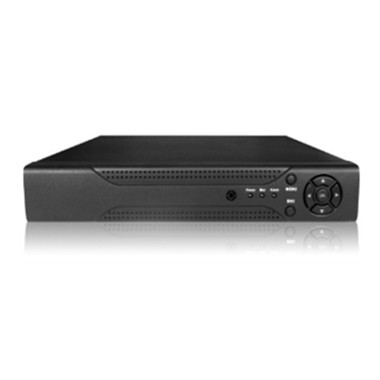

BN-AHD7304LM
4CH AHD DVR
4chs Realtime Recording
4chs Audio input
VGA,HDMI Output ,PTZ control
Not Suport Alarm, 1 SATA
4chs Playback
Support AHD-M series real-time encoding;
Support VGA, HDMI HD output;
Support XM Cloud technology, easy to achieve a variety of network penetration, one step to remote monitoring, easy and simple to operate;
Support various mobile monitoring:(IOS, Android).
Support multiple web browsers(IE,Chrome);
Supporting web, CMS, center platform management software
Support 720P/960P/1080P AHD Camera
|
|
Model
|
BN-AHD7304LM
|
|
System
|
Main processor
|
Huawei Hisilicon
|
|
Video
|
Video codec
|
H.264(High Profile)；
|
|
Encode
|
4*AHD-M
|
|
Decode
|
1*AHD-M
|
|
Video mode
input
|
Pure Analog：4*AHD-L; 4*AHD-M
Pure Network：4*720P;
|
|
Audio
|
Audio compression
|
G.711A
|
|
Intercom
|
support
|
|
Recording and Playback
|
Record mode
|
Manual>alarm>motion detection>timing
|
|
Playback Channels
|
1(pure local input mode)
|
|
Storage and backup
|
Space occupation
|
960H：12~20G/ day*channel
720P：~20G/ day*channel
audio：691.2M/ day*channel
|
|
Backup mode
|
Network backup、USB HDD, USB writer、SATA writer
|
|
Interface
|
Video input
|
4 BNC
|
|
Video output
|
1ch VGA,1ch HDMI
|
|
Audio input
|
4ch RCA
|
|
Audio output
|
1ch RCA
|
|
Alarm input
|
No
|
|
Alarm output
|
No
|
|
Network interface
|
RJ45 10M/100M Adaptive Ethernet port
|
|
remote control
|
RS485:support multiple PTZ protocols
|
|
Protocol
|
No
|
|
USB
|
2 USB ports
|
|
Hard disk
|
1 SATA（Each maximum support 4T ）
|
|
Wireless
|
No
|
|
Other
|
Power
|
12V/2A
|
|
dimension
|
250*220*45mm
|
