Shenzhen BenYuan Vision Technology Co.,Ltd

BN-AHD130DV/IR

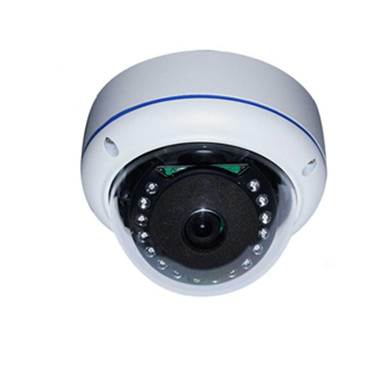

1.3MP AHD 130 Degree Fisheye Camera

1.3 Megapixel AHD
Resolution:1280*960P
130 degree lens
15pcs IR LEDs
1 camera replace 3-5 camera

Specification
Product Name	1.3MegaPixel Vandalproof Dome IR HD AHD 130 Degree Fish Eye Camera
Model No.	BN-AHD130DV/IR
Video
System	High performance NVP2431H ISP processor
Sensor	1/3" CMOS Sensor
Output resolution	1.3 MP :1280(H)×960(V)
D/N Mode	IR cut Auto switching
Minimum Illumination	0.00LUX/F1.2(Led on)
Effective Pixel	PAL : 1280*960@25fps
Effective Pixel	NTSC : 1280*960·30fps
Signal System	PAL/NTSC
Video Standard	AHD and CVBS Standard
Video Output	1CH AHD HD/CVBS Standard Singal Output(Switchable)
Max Transmission Distance	75-5 cables can be up to 500m
Lens and IR
Lens	130° Wide Angle lens
IR distance	15pcs IR LEDs,10-15meter night vision
Common
Shutter Speed	4/25s-1/45,000s
BLC	Off/Low/Medium/High/Highest
White Balance	Auto White Balance
HLC	Support
Operation Temperature	-10°C~55°C
Power Supply	DC12V
Dimension	Φ105*80.8
Weight	0.38Kg
