Shenzhen BenYuan Vision Technology Co.,Ltd

BN-AHD4100DV1/TR

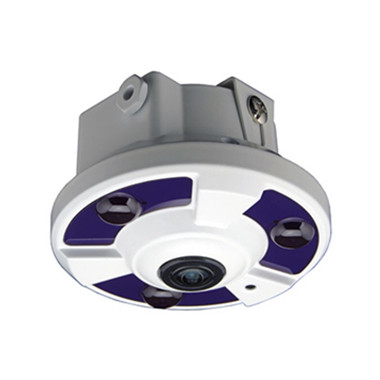

4 In 1 AHD 180 Degree Fisheye Camera

High Definition CMOS Sensor
25/30ftps real time
AHD/TVI/CVI/CVBS
180 Degree Fisheye Lens
1.0/1.3/2.0MP Optional

Model No.	BN-AHD4100DV1/TR	BN-AHD4130DV1/TR	BN-AHD4200DV1/TR
TV System	NTSC/PAL Optional
Video Signal	AHD/CVI/TVI/CVBS signal option
Image sensor	1/4" CMOS	1/3" CMOS	1/2.8" CMOS
Resolution	1.0Megapxiel	1.3Megapixel	2.0Megapixel
Pixel	1280*720P	1280*960P	1920*1080P
Frame	25/30 fps
Illumination	0.1Lux（F2.0,AGC ON), 0 Lux with IR
Shutter Electoric	1/50s~1/100,000s(PAL),1/60s~1/100,000s (NTSC)
IR Led	3pcs IR Led
Lens	180 Degree Lens
Scanning system	2:1 interface
Sync.System	Internal Sysn
S/N Ratio	>48dB (AGC off)	>58dB (AGC off)	>58dB (AGC off)
Day/Night Mode	IR Cut Supported
White Balance	Auto
AGC	Auto	Auto/Manual	Auto/Manual
OSD	YES (Up: AHD, Down: CVI, Left: TVI, Right: CVBS)
Noise Reduction	NO	3D	3D
Power Supply	DC 12V
Operation Environment	–20°C~+60°C / 10%~90%RH
Working Humidity	≤90%
