| Model |
BN-IP200CDV2 |

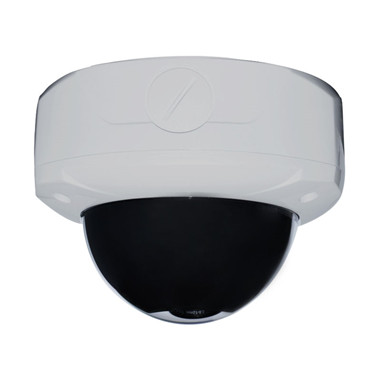

| 2.0MP LOW LUX Day and Night Color Image Vandalproof IP Camera |
| Image Sensor |
1/2” 2.0M Pixel Sony IMX185 CMOS |
| Dynamic Range |
100dB |
| SNR |
≥50dB（AGC OFF） |
| Lens |
C/CS |
| Illumination |
0.5Lux@F1.2（Color Mode）；0.3 Lux@F1.2（B&W mode）；0Lux （IR CUT ON） |
| D/N mode |
Auto IR-CUT switch, B/W, Color, Outer control |
| Gain Control |
Auto/ Manual |
| White Balance |
Auto, Indoor, Outdoor, Sodium Lamp, Manual |
| DNR |
Support 2DNR，3DNR |
| Exposure Mode |
Program mode (customizable shutter interval ), shutter mode (1/5-1/20,000s), support slow shutter |
| Video Compression |
H.265 Main Profile / H.264 High profile / M-JPEG |
| Max Resolution |
1920x1080@25fps |
| Video Resolution |
Main stream：1920x1080、1280x960、1280×720、720×576、640×480 |
| Substream：640×480、480x360、352×288、320×240、176×144、OFF |
| MJPEG：1280x720、OFF |
| Output code rate |
CBR or VBR: 32K~10M |
| OSD |
Support Channel name, date on screen |
| Visit NO. |
3 Users in Mainstream, 6 Users in Substream |
| Network Protocols |
TCP/IP，HTTP，NTP，IGMP，DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，HTTPS、P2P |
| ONVIF Protocol |
Standard ONVIF2.4 |
| Compatibility |
Support HIKVISION、DAHUA、XM CMS、SEETONG UC2、Aebell NVR I8 ONVIF platform、NVR ONVIF protocol |
| Mobile P2P |
Support Android、IOS visit |
| Network interface |
1ch 10/100BaseT Ethernet，RJ45 |
| Optional function |
TF Card Slot, Alarm, WIFI, 4G etc |
| Power |
12VDC@0.20A |
| Size |
140*140*105mm |
| Working Temp |
-30°C ~60°C |
| Working humidity |
0%-90% RH（NO CONDENSING） |
