| Model |
BN-IP100CDV2 |

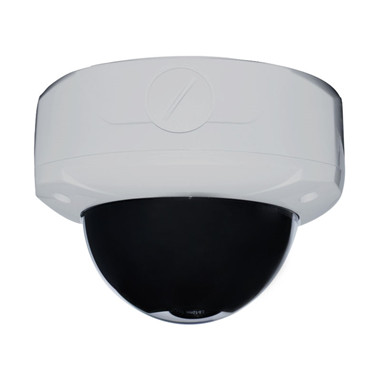

| 1.0MP LOW LUX Day and Night Color Image Vandalproof IP Camera |
| Image Sensor |
1/2” 1.0M Pixel Sony CMOS IMX185A |
| Dynamic Range |
69.5 dB |
| SNR |
44dB |
| Lens |
CS |
| Illumination |
0.5Lux@F1.2（Color Mode）；0.3 Lux@F1.2（B&W mode）；0Lux （IR CUT ON） |
| D/N mode |
Auto IR-CUT switch, B/W, Color, Outer control |
| Gain Control |
Auto/ Manual |
| White Balance |
Auto, Indoor, Outdoor, Sodium Lamp, Manual |
| WDR |
Digital WDR |
| DNR |
Support 2DNR，3DNR |
| Exposure Mode |
Program mode (customizable shutter interval ), shutter mode (1/5-1/20,000s), support slow shutter |
| Video Compression |
H.264 High profile / M-JPEG |
| Max Resolution |
1280*720@25fps |
| Video Resolution |
Main stream：（1280×720、720×576、640×480） |
| Substream：（640×480、352×288、320×240、176×144） |
| Output code rate |
CBR or VBR: 32K~10M |
| Mobile P2P |
Support Android、IOS visit |
| Network Protocols |
TCP/IP，HTTP，NTP，IGMP，DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，HTTPS、P2P |
| Compatibility |
Support HIKVISION、DAHUA、XM CMS、SEETONG UC2、Aebell NVR I8 ONVIF platform、NVR ONVIF protocol |
| Network interface |
1ch 10/100BaseT Ethernet，RJ45 |
| Optional function |
TF Card Slot, Alarm, WIFI, 4G etc |
| Power supply |
12VDC@0.25A |
| Working Temp |
-30°C ~60°C |
| Working humidity |
0%-90% RH (non-condensing) |
| Size |
140*140*105mm |
